PNEUMATIC CONVEYING SYSTEM​

Should I use Pneumatic Conveying System?



It can be used for Dry Powders and Granules. There is a a wide variety of Materials that can be conveyed with this system. Be it powder of any mesh or Granules of around 5 to 10 mm sizes. Any material that needs to be conveyed with Pneumatic Conveying System should be Dry  and Free flowing in the first place. its not advisable to use it if the material has high moisture level or if it is sticky.  Some common examples are noted below.

  • Dyes and pigments
  • Cement
  • Sand
  • Bentonite
  • Bleaching Clay
  • Agro chemicals
  • Pesticide
  • Ash
  • Coal powder
  • coke
  • Carbon Powder
  • Sand
  • Silica
  • Glass dust
  • Catalyst
  • Teflon flakes, powder, granules etc
  • Sugar
  • Maize
  • Food Grains
    Plastic resin, Granules etc

Lean Phase Pneumatic Conveying System

Backed by the sophisticated manufacturing unit we are able to offer a highly efficacious  system in India. The latest technology in our systems ensures these can be integrated in various environments and we also offer the customized systems as per the client requirement. We have exported Such Systems to Europe (conveying Dist: 150 mts, Capacity 30 TPH).

Some of the salient features comprise of the following:

  • High performance

  • Corrosion resistance

  • Durability

  • Consumes less floor space

  • CE Marked Components and Entire System

Pneumatic Conveying System

You can see more videos of our products and Trials on our YouTube channel

For heavy materials and Granules, Lumps, Balls Etc.

Can convey materials up to 25 mm sizes

Components of This System

Feeder Rotary AirLock Valve

This Feeds the material into the conveying Line. It is most important component in the System. The size of this Rotary Airlock Valve is responsible for capacity limitation. It should be properly selected. Higher size will lead to chocking of the system. Smaller size will lead to reduced capacity of the system

Pickup Nozzle or Ventury

This is responsible for lining up the material into the conveying pipeline to be fluidized in the system. It is here that the material is fluidized and starts its journey.

Conveying Ducting

It is the main pipeline that conveys the material to the discharge point. Care should be taken to have shortest root during designing the layout.

Dust Collector

It separates the Fludized material from air. The air separated is vented our from the Blower. It filters the air and material giving out clean air.

Discharge Rotary Airlock Valve

It discharges the material collected in the Dust Collector. Without this Rotary Airlock Valve system cannot run. It is installed below the Dust Collector.

Other Optional Equipment

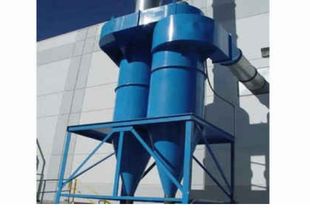

In place of a Dust Collector a cyclone separator can be used. Its outlet will be dusty. Hence it cannot be used when powders are conveyed. In some places Suction Blowers are used to smooth  the air flow. When material is directly Discharged into silo. the Discharge Rotary Airlock Valve is installed below silos. When Multiple Discharge Points are to be catered, Diverter valves are used. A control Panel is also need to control all the motors and have necessary interlockings
