There is a major problem with the automation of kettle-type evaporators. As a
result, it is very difficult to make a decision on whether or not a kettle-type
evaporator is worth investing in.
Our solution, a tool that simulates the process of operating an
evaporator, allows engineers to make better, more informed decisions about their
equipment investments.

Directions to use our tool

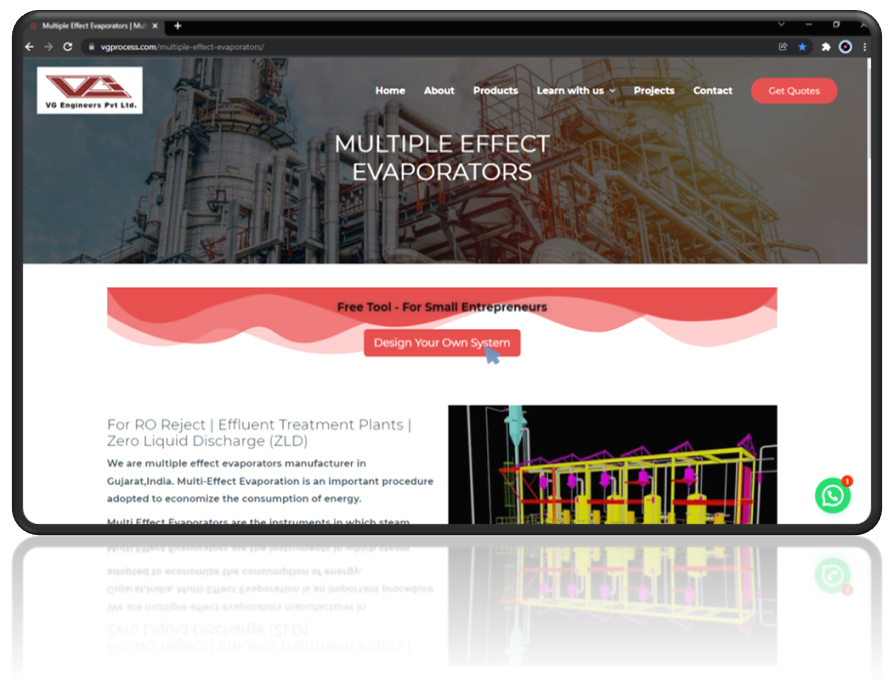

First, click on the following link MULTIPLE EFFECT EVAPORATORS which will redirect to the below
page.

Multiple effect evaporator free tool image

On this page click on the button, “Design Your Own System”.

Multiple effect evaporator free tool image

Our tool will pop up on your screen.

Multiple effect evaporator free tool image

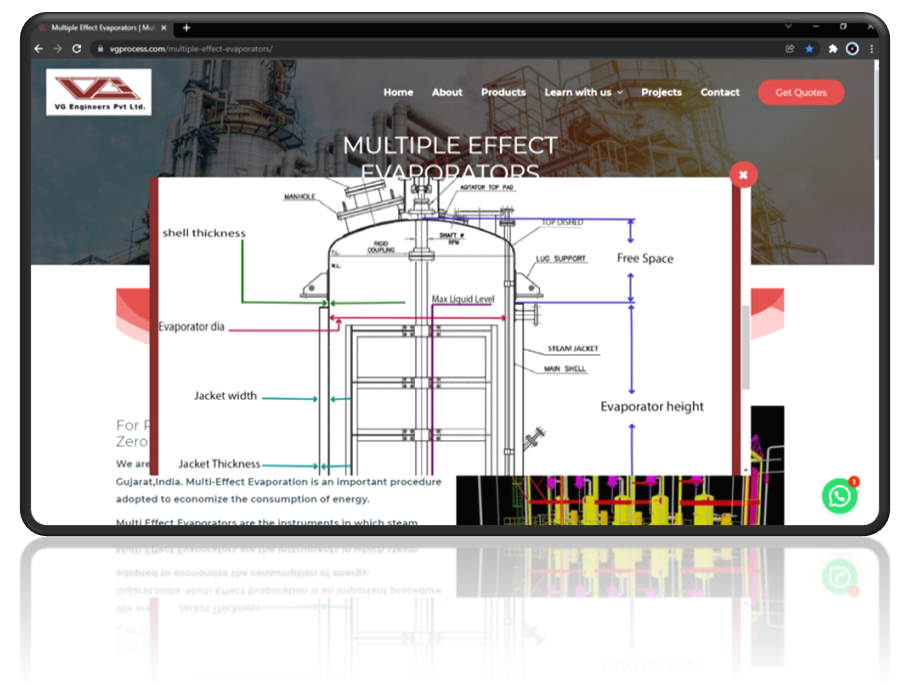

Now scroll down inside the tool where you will find the Design of the Kettle Type
Evaporator. interchangeable.)

Multiple effect evaporator free tool image

This will be the design that you have to follow while manufacturing your own plant. “Submit” button.

To make our tool simple, the input steam pressure value for  dry and saturated
steam will be fixed at 3 kg/cm2
.

Example

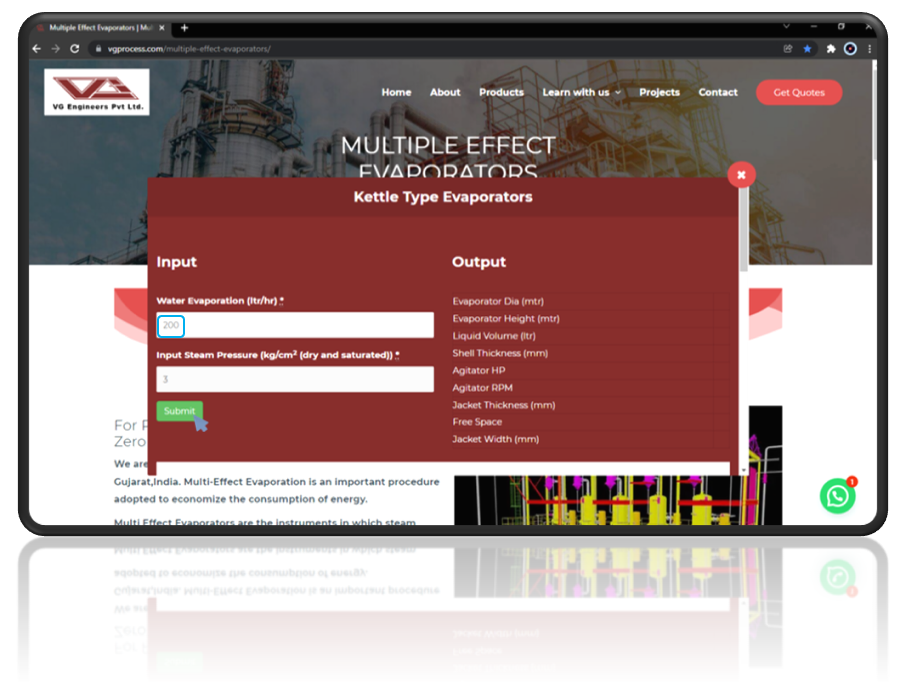

Let’s assume, you want to evaporate 200 liters of liquid per hour. You will enter this value inside the
input as shown in the image & then click on the Submit button.

Multiple effect evaporator free tool image

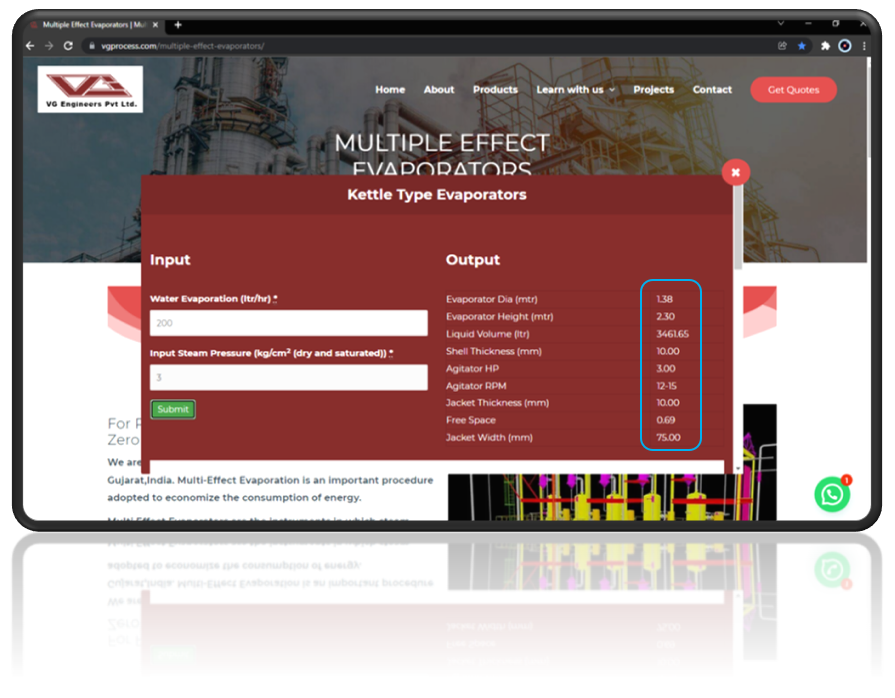

You will get the following result in the Output.

Multiple effect evaporator free tool image

UNDERSTANDING THE OUTPUT DATA

Multiple effect evaporator free tool image
  • You can understand the Dimensions Of The Evaporator from the image easily.
    Liquid Volume indicates the Minimum Amount Of Liquid you have to keep inside the
    Evaporator so that the Agitator Motor can give Maximum Efficiency For Heat Transfer
    with the help of an Anchor Agitator.
    In this example, you can select a motor with 3HP power and the range of rpm can be between 12 to 15
    rpm.
    You can buy all of this equipment from The Open Market, The Scrap Dealer, or you can
    Fabricate It Yourself if you have the resources and the manpower. motor to operate.

PRINTING THE DATASHEET

You can take a printout of the entire datasheet by clicking on print button

Multiple effect evaporator free tool image

It will look like the following image.

Multiple effect evaporator free tool image

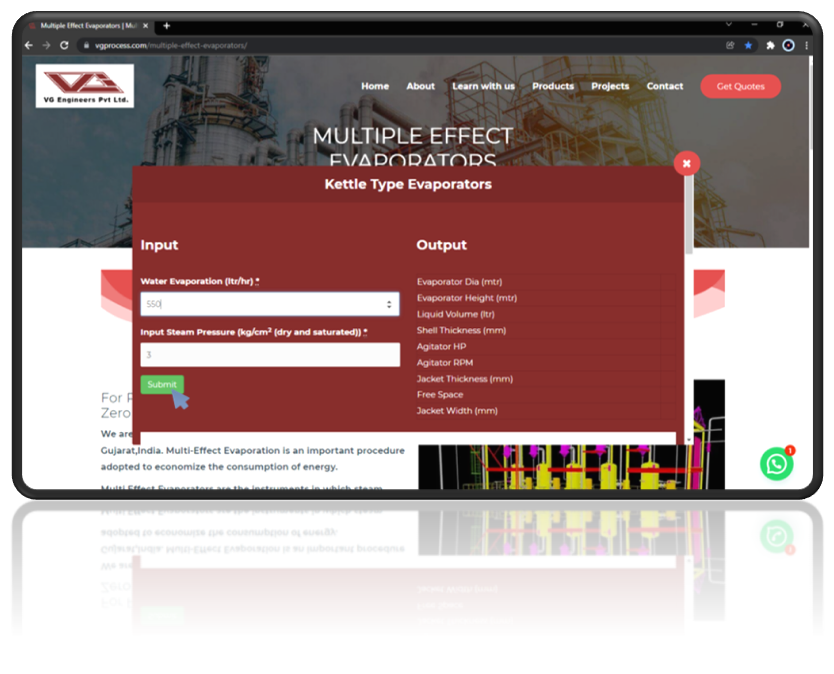

If you want to use the tool for a different combination, you can just change the values inside the input
or refresh the page and follow the same procedure as before and click on submit. Which will show you
the output according to your new values.

UNAVOIDABLE SITUATIONS

Since the tool is designed for small entrepreneurs, it has certain limitations. If you try to enter values
higher than mentioned ahead, you will get an error message

Multiple effect evaporator free tool image
Multiple effect evaporator free tool image
Multiple effect evaporator free tool image

We manufacture Multiple Effect Evaporator from 5 TPD to 50,000 TPD.

You can click on reset to enter new values if you entered the value by mistake.
You can click on contact us if you absolutely need a product with values higher than the specified range
and we will give you a Free Quotation for your Entire System from beginning to end according
to your requirements. If you have any kinds of restrictions such as budget, space, or time limit, we can
even suggest a different type of conveying system that satisfies your needs.
Please do not forget to leave Feedback, it helps improve our services and check out the other types
of products we provide

IMPORTANT SAFETY INSTRUCTION

While it is inspirational to start your own business, you should not forget to read our terms and conditions for your own safety. As you will be manufacturing your own system, we are not liable for any kind of mishaps and failures in your project. We strongly advise taking guidance from us or anyone else with proper knowledge and experience if you are new to the industry or feel even a little bit unsure about any aspect of your project. We hope that you make your decisions wisely.
